YUC-KLA6

2MP, 30fps, H.264+/MJPEG, Varifocal
Product Info
H.265 2MP IP DOME CAMERA


YUC-KLA6
   •  H.264+ compression saves bandwidth up to 50%
   •  2MP (1920x1080) 30fps real time & True WDR
   •  Starlight performance
   •  Built-in varifocal lens 2.8-12mm
   •  ROI (Region of Interest) & smart stream function
   •  ANR (Automatic Network Replenishment) available
   •  Smart IR to 30 Meter
   •  Remote motion storage to Google Drive and Dropbox
   •  Motion detection (area/sensitivity/time adjust)
   •  Day/night profile adjustment
   •  Mobile view support (push video)
   •  PoE support
   •  ONVIF compliant



Server Compression H.264+ / H.264 / MJPEG, 3 Streams
Resolution 1920x1080@30fps, 1280x720@30fps, 640x480@30fps, 640x360@30fps, 320x240@30fps, 176x144@30fps
Traffic Control 32K ~ 8Mbps
Max. Frame Rate (30fps)1920x1080
Safety Password protection, IP address filtering, HTTPS encrypted data transmission, 802.1X port-based authentication for network protection, QoS/DSCP
Protocols IPv6, IPv4, HTTP, HTTPS, SNMP, SSL, TLS, DNS, ICMP, IGMP, ARP, SNTP, QoS/DSCP, IEEE 802.1X, RTSP/RTP/RTCP, TCP/IP, UDP, SMTP, FTP, PPPoE, DHCP, DDNS, NTP, UPnP, 3GPP, SAMBA, Bonjour, Google Drive, Dropbox, ONVIF Profile S, RTMP
Number of User Max. 10 connections
Alerting SMTP / FTP / Samba / SD card / IO / Google Drive / Dropbox
Pre / Post Alarm Pre(0,1,2,3,4,5) / Post(0,1,2,3,4,5,10)seconds
Release for Alarm Motion Detection / IO / Tampering Detection / Sound Detection
Network
Camera
Sensor 1/2.8” Sony STARVIS CMOS sensor IMX 307
Optical Lens Vari-focal 2.8-12mm / F1.4
View Angle 34~100°(H), 19~52°(V)
WDR Ture WDR
AGC 8X ~ 128X
Shutter Time Outdoor / Indoor / 1/30, 1/50, 1/60, 1/100, 1/125, 1/250, 1/500, 1/1000, 1/5000, 1/10000
Min Illum 0.005 Lux (Color), 0.001 Lux (B/W)
IR LED / Range 4pcs High Power LED / 30M
Day / Night Light sensor mode / Color mode(Day) / B/W mode(Night) / Times mode / Synchronize with DI input
Intelligent Feature ROI / Smart Stream / IVA: Double Trigger: Motion + IO / Tampering Detection / Sound Detection / Lens Distortion Correction (LDC) / Anti Fog / True WDR / Corridor Mode / Privacy Mask / 3D-De Noise / Smart IR / Cloud Backup / ANR (Automatic Network Replenishment) / Push Video Notification / P2P Optional
Audio Audio Compression G.711(64Kbps) / G.726(32Kbps) / G.726(24Kbps)
Adjust Volume Mic-in / Audio-out web adjustable
Audio In 3.5mm stereo jack, support 2 way
Audio Out 3.5mm stereo jack, support 2 way
Terminal Network Interface Ethernet (10Base-T/100Base-Tx) / PoE
Video Interface BNC, Composite Video (NTSC / PAL)
External Port DI x 1 / DO x 1 / Default x 1
SD Card Micro SD Card Slot support up to 256G
(Recording trigger for schedule, Motion detection, IP check, Network wire break down, DI)
General Operation Voltage DC 12V Max: 5.0W / PoE Max: 6.5W
Dimen./Weight 132mm(φ) x 108mm(H) / 485g
Operation Temp. -20 ~ +50
Enclosure Certificate --

Type
Description
Download
Spec Specification Sheet
Firmware Latest Firmware
Manual User Manual
Manual Quick Installation Guide
Software Recording Software
Software IP Scanner
APP Andriod APP
APP iPhone APP

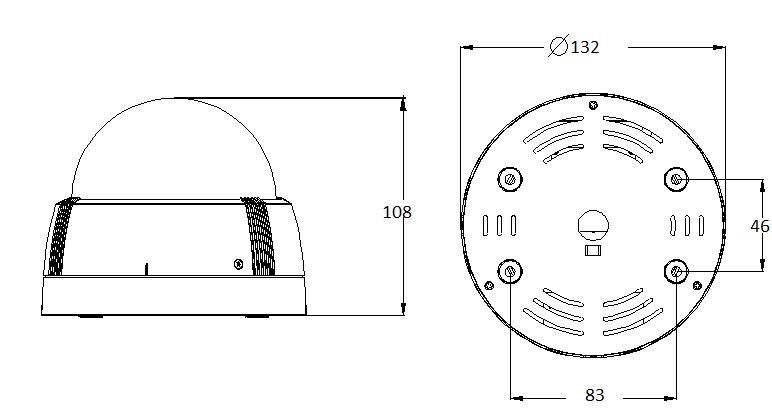

Dimension

Accessories
