• Temperature range -40°C ~ 70°C
• IP68 & IP69K
• Stainless steel 316L
• Built-in 4.2X motorized zoom lens 2.8-12mm

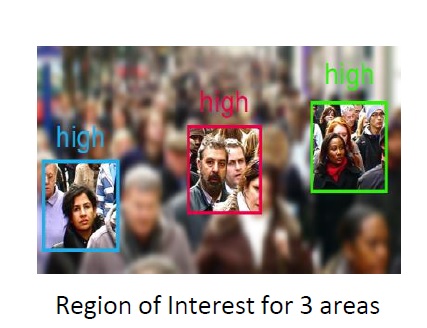

• ROI (Region of Interest) & smart stream function
• Star Light Sony sensor
• Ture WDR 120dB
• Double trigger
• Smart IR to 35 Meter
• POE support
• ONVIF compliant
• APP push video
• Compact size
• Made in Taiwan
Server | Compression | H.264+ / H.264 / MJPEG, 3 Streams |
Resolution | 1920x1080@30fps, 1280x720@30fps, 640x480@30fps, 640x360@30fps, 320x240@30fps ,176x144@30fps | |
Traffic Control | 32K ~ 8Mbps | |
Max. Frame Rate | (30fps)1920x1080 | |
Safety | Password protection, IP address filtering, HTTPS encrypted data transmission, 802.1X port-based authentication for network protection, QoS/DSCP | |
Protocols | IPv6, IPv4, HTTP, HTTPS, SNMP, SSL, TLS, DNS, ICMP, IGMP, ARP, SNTP, QoS/DSCP, IEEE 802.1X, RTSP/RTP/RTCP, TCP/IP, UDP, SMTP, FTP, PPPoE, DHCP, DDNS, NTP, UPnP, 3GPP, SAMBA, Bonjour, Google Drive, Dropbox, ONVIF Profile S | |
Number of User | Max. 10 connections | |
Alerting | SMTP / FTP / Samba / SD card / I/O / Google Drive / Dropbox | |
Pre / Post Alarm | Pre(0,1,2,3,4,5) / Post(0,1,2,3,4,5,10)seconds | |
Release for Alarm | Motion Detection / I/O / Tampering Detection / Sound Detection | |
Network Camera |
Sensor | 1/2.8” Sony STARVIS CMOS sensor |
Optical Lens | Motorized lens 2.8-12mm / optical 4.2X zoom in / F1.4 | |
View Angle | 35~95°(H), 19~50 °(V) | |
WDR | Ture WDR 120dB | |
AGC | 8X ~ 128X | |
Shutter Time | Outdoor / Indoor / 1/30, 1/50, 1/60, 1/100, 1/125, 1/250, 1/500, 1/1000, 1/5000, 1/10000 | |
Min Illum | 0.005 Lux (Color), 0.001 Lux (B/W) | |
IR LED / Range | 4pcs High Power LED / 35M | |
Day / Night | Light sensor mode / Color mode(Day) / B/W mode(Night) / Times mode / Synchronize with DI input | |
Intelligent Feature | ROI / Smart Stream / Double Trigger: Motion + IO / Tampering Detection / Sound Detection / Lens Distortion Correction (LDC) / Anti Fog / True WDR / Corridor Mode / Privacy Mask / 3D-De Noise / Smart IR / Cloud Backup / ANR (Automatic Network Replenishment) / Push Video Notification / P2P Optional | |
Audio | Audio Compression | G.711(64Kbps) / G.726(32Kbps) / G.726(24Kbps) |
Adjust Volume | Mic-in / Audio-out web adjustable | |
Audio In | 3.5mm stereo jack, support 2 way | |
Audio Out | 3.5mm stereo jack, support 2 way | |
Terminal | Network Interface | Ethernet (10Base-T/100Base-Tx) / PoE |
Video Interface | -- | |
External Port | DI x 1 / DO x 1 / Default x 1 | |
SD Card | Internal SD Card Slot support up to 256G, industrial SD card suggest (Recording trigger for schedule, Motion detection, IP check, Network wire break down, DI) |
|
General | Operation Voltage | DC 12V Max: 5.06W(IR ON), 3.12W(IR OFF) / PoE Max: 5.69W(IR ON), 3.72W(IR OFF) Heater DC 12V Max: 7.38W / Heater PoE Max: 8.06W |

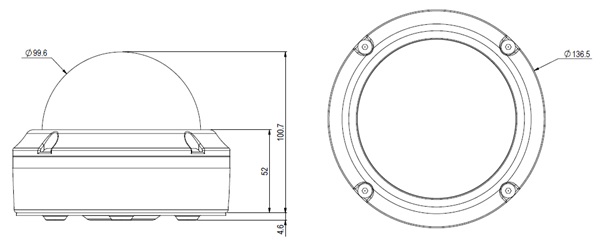

Dimen./Weight | 136.5mm(φ) x 101mm(H) / 2.0kgs | |
Operation Temp. | -40℃ ~ +70℃ | |
Enclosure | 316L Stainless steel Housing, NEMA-4X, IP68, IP69 |
Type
|
Description
|
Download
|
Spec | Specification Sheet | |
Manual | User Manual | |
Manual | Quick Installation Guide | |
Software | Recording Software | |
Software | IP Scanner | |
APP | Andriod APP | |
APP | iPhone APP |
