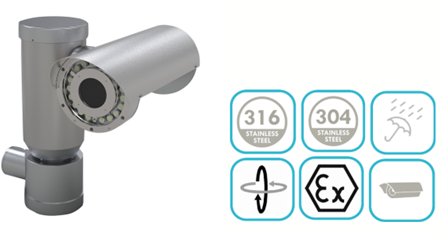

￭ Surface treatment: Electrolytic plating or Powder painting ( Optional )
￭ Carry single camera housing ( Camera not included )
￭ Built-in 18 high efficient IR LEDs whose can project as far as 100 meter
￭ Adopt Oriental’s motor
￭ Built-in micro switch to protect vertical rotation
￭ Support Home Position function
￭ Meet IP 66
￭ Pan / Speed : 0-360°continuous rotation / 1~20°per second
￭ Tilt / Speed : -90°~+90° rotation / 1~20°per second
￭ Input Voltage : 24VAC
￭ Interface: IP ( RJ45 )
￭ Protocol: Pelco-D, Pelco-P
￭ Dimension: 485mm x 437mm ( D ) x 530mm ( H )
￭ Customized camera & Lens combination
￭ Application: Hazardous area, highly corrosive environments or more dangerous environments,
such as arsenals, chemical plants, oil, gas refineries, coal mining, etc.
￭ Certificate: Ex db IIC T6 / Ex tb IIIC T85° C UL certificate ( pending )
|
Type
|
Description
|
Download
|
| Spec | Specification Sheet |  |
| Manual | User Manual | |
