￭ Surface treatment: Electrolytic plating or Powder painted ( Optional )

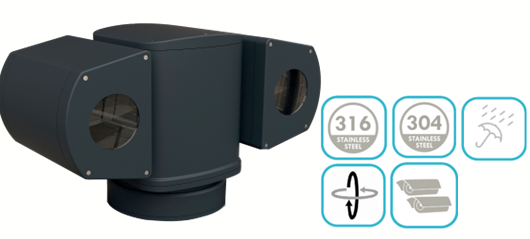

￭ Carry dual camera housing
￭ Adopt Oriental's motor
￭ Built-in micro switch to protect vertical rotation
￭ Support home position function
￭ Protection Level: IP66
￭ Rotating Speed: Pan:100°/s; Tilt:100°/s
￭ Rotating Angle: Pan: 0°~360° continuous, Tilt: +45°~ -45°
￭ Input Voltage : 24VDC
￭ Interface: IP ( RJ45 )
￭ Protocol: Pelco-D, Pelco-P
￭ IK Rating: IK10
￭ Dimension: 390 mm ( W ) x 305 mm ( H )
￭ Customized camera & Lens combination
￭ Application: Highly corrosive or moisture environments, valuable facility protection such as
chemical plants, power system, forest protection, airport guard, coastal guard, ship,..etc.
|
Type
|
Description
|
Download
|
| Spec | Specification Sheet |  |
| Manual | User Manual | |
