￭ Surface treatment: Metal color or Powder painted ( Optional )

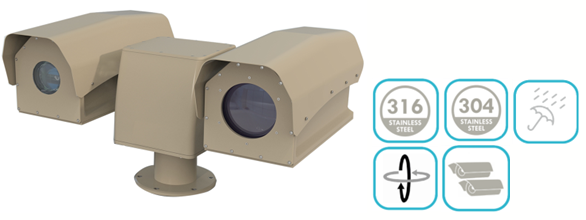

￭ Carry dual camera housings ( Max. load:10 KGS per side )
￭ Adopt Oriental's motor
￭ Built-in micro switch to protect vertical rotation
￭ Support home position function
￭ Protection Level: IP66
￭ Rotating Speed: Pan: 0.01°~60°/s; Tilt:0.01°~30°/s
￭ Rotating Angle: Pan: 0°~360° continuous, Tilt: +90°~ -90°
￭ Input Voltage : 24VDC
￭ Interface: IP ( RJ45 )
￭ Protocol: Pelco-D, Pelco-P
￭ Dimension: 685 mm ( W ) x 424 mm ( H ) x 483 mm ( D )
￭ Customized camera & Lens combination
￭ Application: Highly corrosive or moisture environments, valuable facility protection such as
chemical plants, power system, forest protection, airport guard, coastal guard, ship,..etc.
|
Type
|
Description
|
Download
|
| Spec | Specification Sheet |  |
| Manual | User Manual | |
