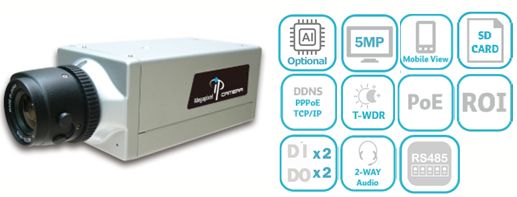

l5 Megapixel Box IP Camera
lH.264+/ H.264/ M-JPEG Compression
lROI Function
lDigital Noise Reduction
lTrue Wide Dynamic Range
lDay & Night Switch Time Control Manually
lIR-Cut Filter
lPower over Ethernet Available
lMicro SD Card Backup (Optional)
lSupport iPhone/iPad/Android
l4 Streaming
lSDK for Software Integration
lFree Bundle 36 ch Recording Software
| Hardware | CPU | Multimedia SoC (MIT) |
| RAM | 512MB | |
| Flash | 128MB | |
| Image Sensor | 1/2.7” CMOS Sensor | |
| Sensitivity | Color: 0.01 Lux (AGC ON) / B/W: 0.005 Lux (AGC ON) | |
| Lens Changeable | Yes, CS Mount (suggest 5-50mm) | |
| ICR | IR cut Filter Mechanism | |
| I/O | 2 DI/ 2 DO | |
| Power over Ethernet | Yes | |
| Video Output | No | |
| RS-485 | Yes | |

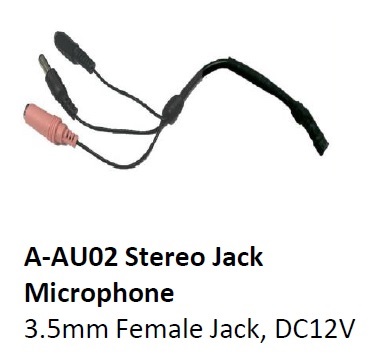

| Audio | G.711(64K) and G.726(32K,24K) audio compression Input: Microphone built-in & 3.5 Ø stereo jack (auto switch) Output: 3.5mm phone jack, Support 2-way |
|
| Power Consumption | DC 12V Max: 2 W / PoE Max: 2.4 W | |
| Operating Temperature | -20°C ~ 60°C | |
| True Digital Wide Dynamic | 100dB | |
| S/N Ratio | 60dB | |
| Dimensions | 65mm (W) x 58mm (H) x 132mm (L) | |
| Weight | 450 g | |
| Network | Ethernet | 10/ 100 Base-T |
| Network Protocol | IPv6, IPv4, HTTP, HTTPS, SNMP, SSL, TLS, DNS, ICMP, IGMP, ARP, SNTP, QoS/DSCP, RTMP, IEEE 802.1X, RTSP/RTP/RTCP, TCP/IP, UDP, SMTP, FTP, PPPoE, DHCP, DDNS, NTP, UPnP, SAMBA, Bonjour, Onvif profile S, T, G |
|
| System | Video Resolution | 2592x1944@30fps, 2592x1520@30fps, 1920x1080@30fps, 1280x720@30fps, 640x480@30fps |
| Video Adjust | Brightness, Contrast, Hue, Saturation, Sharpness, AGC, Night Mode, WDR, Flip, Noise Reduction, Day & Night Adjustable, LDC, BLC |
|

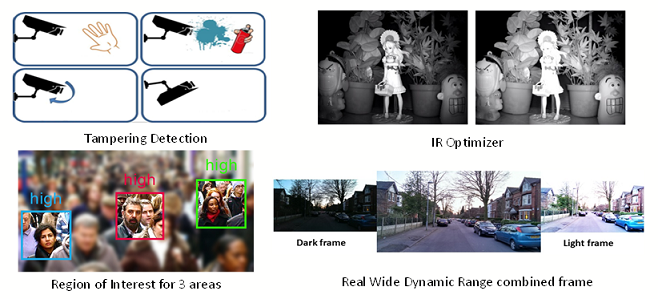

| Features | ROI, Advance Smart Stream, Motion Detection, Privacy Mask, Anti Fog, Tampering Detection, Corridor Mode, Push Video, P2P(Optional) |
|
| AI function (optional) | Crowd Detection, Queue Detection, Intrusion Detection, Loitering Detection, Line Crossing Detection, Enter/ Exit counting, Parking Detection |
|
| Quadruple Streaming | Yes | |
| Image Snapshot | Yes | |
| Full Screen Monitoring | Yes | |
| Privacy Mask | Yes, 5 different areas | |
| Compression Format | H.264+/ H.264/ M-JPEG | |
| Video Bitrates Adjust | CBR, VBR | |
| Motion Detection | Yes, 12 different areas | |
| Triggered Action | Mail, FTP, Save to SD card, DO, Samba | |
| Security | Password protection, IP address filtering, HTTPS encrypted data transmission, 802.1X port-based authentication for network protection, QoS/DSCP | |
| Firmware Upgrade | HTTP mode, can be upgraded remotely | |
| Simultaneous Connection | Up to 10 | |
| Wireless (Optional) | Wireless | 802.11b/g/n |
| Security | WEP, WPA-PSK, WPA2-PSK | |
| SD Card Management | Recording Trigger | Motion Detection, IP check, Network break down (wire only), Schedule, DI |
| Video Format | AVI, JPEG | |
| Video Playback | Yes | |
| Delete Files | Yes | |
| Remote Browsing |
OS | Windows 10, Chrome, Edge, Firefox, Safari, Opera |
| Hardware Suggested | Intel Core i7-4790 4GHz, 8G DDR, NV GeForce GTX750 | |
| Mobile Support | iOS 9 or above, Android 5 or above. | |
| *Specifications are subject to change without notice | ||
|
Type
|
Description
|
Download
|
| Spec | Specification Sheet |  |
| Firmware | Latest Firmware | |
| Manual | User Manual | |
| Software | Recording Software (HNRS) | |
| Software | IP Scanner | |
| APP | Andriod APP | |
| APP | iPhone APP | |
