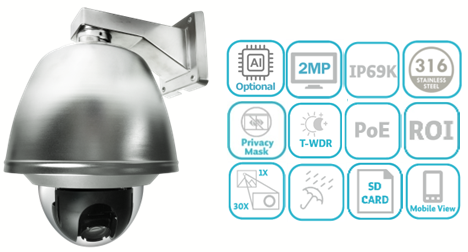

l316L Stainless Steel Housing
lAnti-corrosion standard : NEMA-4X
l2 Megapixel Real Time 60FPS, 30x Zoom Module
lH.264+/ H.264/JPEG Compression
lStarvis sensor
lSmart Auto Tracking(Optional)
lROI Function
lTrue Wide Dynamic Range 120dB
lTrue Day/Night Function – IR Cut Filter (ICR)
l360° Continuous Pan and 180° Tilt
lPower over Ethernet(60W compliant)
l2-Way Audio
lIP68/69
l-40°C ~ 50°C Temperature Range for various weather Conditions (Optional with Heater)
lSupport iPhone/Android
lQuadruple Streaming
lSDK for Software Integration
lFree Bundle 36 ch Recording Software
| Hardware | CPU | Multimedia SoC (MIT) |
| RAM | 512MB | |
| Flash | 128MB | |
| Image Sensor | 1/2.8" Sony Starvis CMOS Sensor | |
| Sensitivity | Color: 0.005 Lux (AGC ON), B / W: 0.001 Lux (AGC ON) | |
| Lens Type | 30x optical zoom | |
| Focal Length | 4.7mm (WIDE) to 141 mm (TELE) | |
| Maximum Aperture | F1.5 ~ F4.0 | |
| View Angle | 3.9°~60°(H), 1.8°~34°(V) | |
| Pan / Tilt Range | Pan: 360° / Tilt: 180° | |
| Manual Control Speed | Pan: 1.25 ~ 90 °/s, Tilt: 0.63 ~ 45 °/s | |
| Preset (Patrol) Speed | 300°/s | |
| Preset Accuracy | <±0.15° | |
| Preset Points | 256 | |
| Preset Focus Mode | Auto / Manual | |
| Patrol | 8 groups with 24 points | |
| Auto Pan | Yes | |
| Auto Recovery | Pending Time, Action | |
| Cruise | Yes, 8 groups | |
| Home Position | Yes | |
| Point To Go | Yes | |
| Auto Electronic Shutter | Auto / Shutter Mode | |
| AE – Iris priority | N/A | |
| AE – Shutter priority | outdoor, indoor, 1/5 ~ 1/33000 | |
| Day & Night Mode | Auto / Color / B/W / Time Mode with auto ICR | |
| Day & Night Level | 1 ~ 5 | |
| Day & Night Delay | 10 ~ 20 sec | |
| Sense Up | 1/30 ~ 1/5 | |
| DNR Mode | Off / Low / Middle / High | |
| WDR Mode | Off /1 (Low) ~ 8 (High) | |
| Video Orientation | Off / Flip / Mirror / Rotate | |
| White Balance | Auto / Tungsten Lamp / Sunlight / Cloudy | |
| R-Gain | -5 (Low) ~ 5 (High) | |
| B-Gain | -5 (Low) ~ 5 (High) | |
| Sharpness | -4 ~ 4 | |
| Defog | Off / On | |
| OSD | Off / On | |
| Contrast | -4 ~ 4 | |
| Saturation | -4 ~ 4 | |
| I/O | 4 DI / 1 DO | |
| Audio | G.711(64K) and G.726(32K,24K) audio compression Input: 3.5mm phone jack / Output: 3.5mm phone jack, Support 2-way |
|
| Power Source | DC12V / PoE | |
| Power Consumption | Normal: DC 12V Max: 9.5W / PoE Max: 11.6W Optional with Heater: DC 12V Max: 19.5W / PoE Max: 21.6W |
|
| Operating Temperature | -20°C ~ 60°C -40°C ~ 50°C (Optional with Heater) |
|

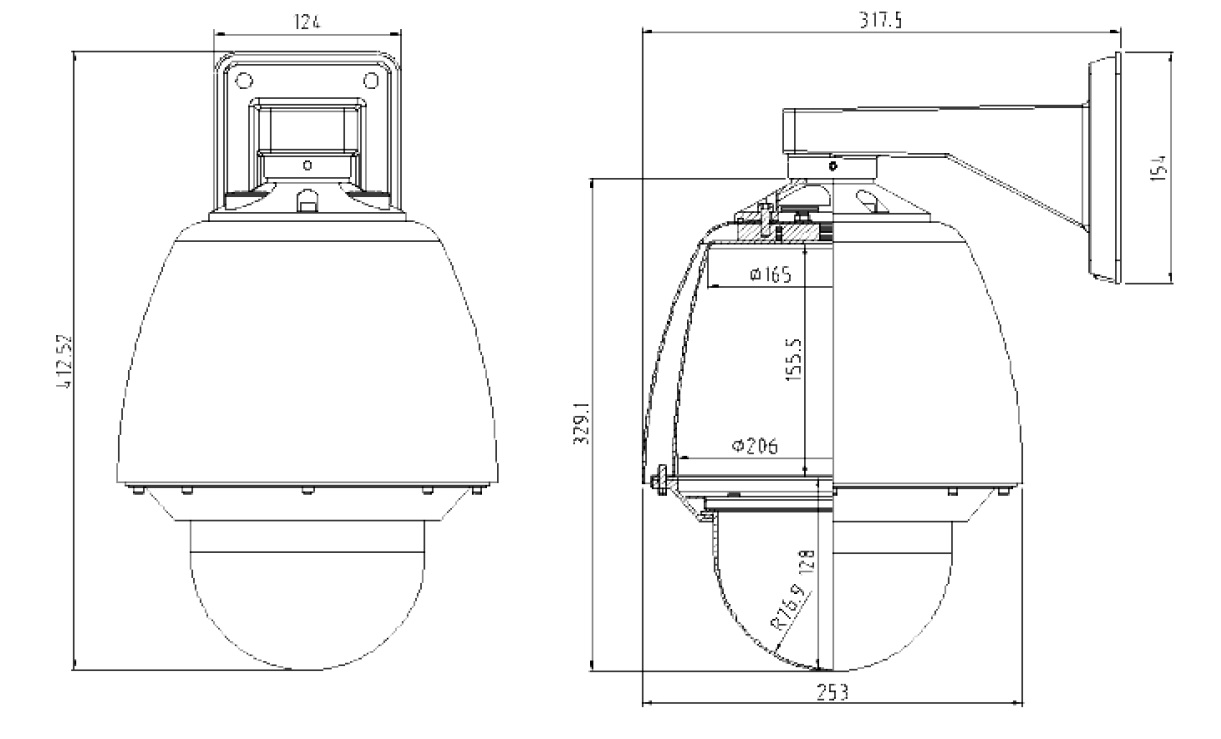

| Dimensions | 253mm(φ) X 407.2mm(H) | |
| Weight | 10.5kg | |
| Network | Ethernet | 10/ 100 Base-T |
| Network Protocol | IPv6, IPv4, HTTP, HTTPS, SNMP, SSL, TLS, DNS, ICMP, IGMP, ARP, SNTP, QoS/DSCP, IEEE 802.1X, RTSP/RTP/RTCP, TCP/IP, UDP, SMTP, FTP, PPPoE, DHCP, DDNS, NTP, UPnP, 3GPP, SAMBA, Bonjour, ONVIF profile S, T&G |
|
| System | Video Resolution | 1920x1080@60fps, 1920x1080@30fps, 1280x720@30fps, 640x480@30fps |
| Video Adjust | Auto Electronic Shutter、Day & Night Mode、 Day & Night Level、Day & Night Delay、DNR Mode、 WDR Mode、Video Orientation、White Balance、 Exposure Compensation、Contrast、Saturation、Sharpness |
|
| Features | ROI, Smart Stream, Motion Detection, Privacy Mask, Defog,Push Video, P2P(Optional), OSD, DIS, Tampering Detection |
|
| AI function (optional) | Crowd Detection, Queue Detection, Intrusion Detection, Loitering Detection, Line Crossing Detection, Auto Tracking |
|
| Quadruple Streaming | Yes | |
| Image Snapshot | Yes | |
| Full Screen Monitoring | Yes | |
| Privacy Mask | Yes, 24 area | |
| Compression Format | H.264+/ H.264/ M-JPEG | |
| Video Bitrates Adjust | CBR, VBR | |
| Motion Detection | Windows area | |
| Triggered Action | Mail, FTP, Save to SD card, DO, Samba | |
| Security | Password protection, IP address filtering, QoS/DSCP, HTTPS encrypted data transmission, 802.1X port-based authentication for network protection |
|
| Firmware Upgrade | HTTP mode, can be upgraded remotely | |
| Simultaneous Connection | Up to 10 | |
| SD Card Management | Recording Trigger | Motion Detection, IP check, Network break down (wire only), Schedule, DI |
| Video Format | AVI, JPEG | |
| Video Playback | Yes | |
| Delete Files | Yes | |
| Remote Browsing |
OS | Windows 10, Chrome, Edge, Firefox, Safari, Opera |
| Hardware Suggested | Intel Core i7-4790 4GHz, 8G DDR, NV GeForce GTX750 | |
| Mobile Support | iOS 9 or above, Android 5 or above. | |
| *Specifications are subject to change without notice | ||
|
