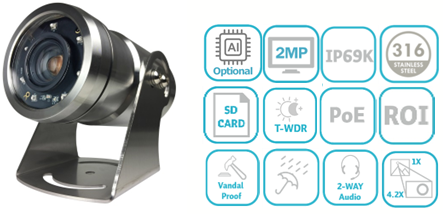

l316L Stainless Steel Housing
lAnti-corrosion standard : NEMA-4X
l2 Megapixel IR Bullet IP Camera
lH.264+/ H.264/ M-JPEG Compression
lROI Function
lSmart Stream
lStarvis Sensor
lSmart Focus System for Remote Focus Adjustment
lDigital Noise Reduction
lPower over Ethernet
lTrue Wide Dynamic Range
lDay & Night Manual Switch Time Control
lIR LED Built-in 40M~50M
l2-way Audio
lIP68/69
lSDK for Software Integration
lFree Bundle 36 Ch Recording Software
| Hardware | CPU | Multimedia SoC (MIT) |
| RAM | 256MB | |
| Flash | 128MB | |
| Image Sensor | 1/2.8” Sony Starvis CMOS Sensor | |
| Sensitivity | Color: 0.003 Lux (AGC ON) / B/W: 0.001 Lux (AGC ON) | |
| Lens Type | 2.8-12mm 4.2X Motorized Zoom Lens @ F1.4 | |
| View Angle | 33.1~94.46°(H), 18.09~50.23 °(V) | |
| ICR | IR cut Filter Mechanism | |
| I/O | 1 DI/ 1 DO | |
| Video Output | No | |
| Power over Ethernet | Yes | |
| Video Output | No | |
| Audio | G.711(64K) and G.726(32K,24K) audio compression Input: 3.5mm phone jack / Output: 3.5mm phone jack, Support 2-way |
|
| Power Consumption | Normal: DC 12V Max: 5.1W / PoE Max: 5.9W Optional with Heater: DC 12V Max: 8.1W / PoE Max: 9.3W |
|
| Operating Temperature | -20°C ~ 60°C -40°C ~ 50°C (Optional with Heater) |
|
| Wide Dynamic Range | 120dB | |
| S/N Ratio | 65dB | |
| Dimensions | 90mm(φ) X 133.5mm(H) | |
| Weight | 2.25kg | |
| IR LED | LEDs | High Power LEDs x5, 850nM |
| IR Distance | 40M~50M | |
| Network | Ethernet | 10/ 100 Base-T |
| Network Protocol | IPv6, IPv4, HTTP, HTTPS, SNMP, SSL, TLS, DNS, ICMP, IGMP, ARP, SNTP, QoS/DSCP, RTMP, IEEE 802.1X, RTSP/RTP/RTCP, TCP/IP, UDP, SMTP, FTP, PPPoE, DHCP, DDNS, NTP, UPnP, SAMBA, Bonjour, Onvif profile S, T, G | |
| System | Video Resolution | 1920x1080@30fps, 1280x720@30fps, 640x360@30fps |
| Video Adjust | Brightness, Contrast, Hue, Saturation, Sharpness, AGC, Night Mode, WDR, Flip, Noise Reduction, Day & Night Adjustable, LDC, BLC |
|
| Features | ROI, Advance Smart Stream, Motion Detection, Privacy Mask, Anti Fog, Tampering Detection, Corridor Mode, Push Video, P2P(Optional) | |
| AI function (optional) | Crowd Detection, Queue Detection, Intrusion Detection, Loitering Detection, Line Crossing Detection, Enter/ Exit counting, Parking Detection |
|
| Quadruple Streaming | Yes | |
| Image Snapshot | Yes | |
| Full Screen Monitoring | Yes | |
| Privacy Mask | Yes, 5 different areas | |
| Compression Format | H.264+/ H.264/ M-JPEG | |
| Video Bitrates Adjust | CBR, VBR | |
| Motion Detection | Yes, 12 different areas | |
| Triggered Action | Mail, FTP, Save to SD card, DO, Samba | |
| Security | Password protection, IP address filtering, QoS/DSCP HTTPS encrypted data transmission, 802.1X port-based authentication for network protection, |
|
| Firmware Upgrade | HTTP mode, can be upgraded remotely | |
| Simultaneous Connection | Up to 10 | |
| SD Card Management | Recording Trigger | Motion Detection, IP check, Network break down (wire only), Schedule, DI |
| Video Format | AVI, JPEG | |
| Video Playback | Yes | |
| Delete Files | Yes | |
| Remote Browsing |
OS | Windows 10, Microsoft IE 11, Chrome, Edge, Firefox, Safari, Opera |
| Hardware Suggested | Intel Dual Core 2.8G, RAM, 4GB, Graphic card: 128MB | |
| Mobile Support | iOS 8 or above, Android 4.4.2 or above. | |
| *Specifications are subject to change without notice | ||
|
