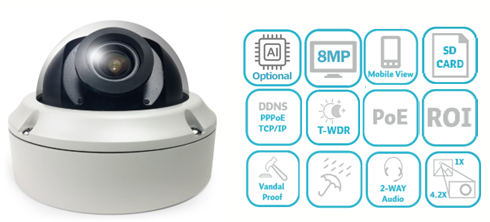

l8 Megapixel IR Dome IP Camera
lH.264+/ H.264/ M-JPEG Compression
lAdvance Smart Stream
lROI Function
lSmart Focus System for Remote Focus Adjustment
lDigital Noise Reduction
lPower over Ethernet
lTure Wide Dynamic Range 120dB
lDay & Night Manual Switch Time Control
lIR LED Built-in 30M ~40M
lIR Cut Filter Mechanism
lMicro SD Card Backup
l2-way Audio
lIP66, IP68
lIK10
lSupport iPhone/Android
lSDK for Software Integration
lFree Bundle 36 Ch Recording Software
| Hardware | CPU | Multimedia SoC(MIT) |
| RAM | 512MB | |
| Flash | 128MB | |
| Image Sensor | 1/2.5” CMOS Sensor | |
| Sensitivity | Color: 0.01 Lux (AGC ON) / B/W: 0.005 Lux (AGC ON) | |
| Lens Type | 2.8-13.5mm 4.8X Bulid-in Zoom Lens @ F1.6 | |
| View Angle | 34.7~106.6°(H), 19.3~55.9°(V) | |
| Rotary axis angle | Pan : 355° / Tilt : 70° / Rotation : 355° | |
| ICR | IR cut Filter Mechanism | |
| I/O | 1 DI/ 1 DO | |
| Power over Ethernet | Yes | |
| Video Output | No | |
| Audio | G.711(64K) and G.726(32K,24K) audio compression Input: 3.5mm phone jack / Output: 3.5mm phone jack, Support 2-way |
|
| Power Consumption | DC 12V Max: 5.3 W / PoE Max: 6.3 W | |
| Operating Temperature | -20°C ~ 50°C [*IR OFF] / 40°C [*IR ON] | |
| Wide Dynamic Range | 120dB | |
| S/N Ratio | 65dB | |
| Dimensions | 137mm (ɸ) x 102mm (H) | |
| Weight | 890 g | |
| IR LED | LEDs | High Power LEDs x4, 850nM |
| IR Distance | 30M~40M | |
| Network | Ethernet | 10/ 100 Base-T |
| Network Protocol | IPv6, IPv4, HTTP, HTTPS, SNMP, SSL, TLS , DNS , ICMP, IGMP, ARP, SNTP, QoS/DSCP, RTMP, IEEE 802.1X, RTSP/RTP/RTCP, TCP/IP, UDP, SMTP, FTP, PPPoE, DHCP, DDNS, NTP, UPnP, SAMBA, Bonjour, Onvif profile S,T,G | |
| System | Video Resolution | 3840x2160@30fps , 2592x1520@30fps, 1920x1080@30fps, 1280x720@30fps, 640x360@30fps |
| Video Adjust | Brightness, Contrast, Hue, Saturation, Sharpness, AGC, Night Mode, WDR, Flip, Noise Reduction, LDC, BLC Day & Night Adjustable |
|
| Features | ROI, Advance Smart Stream, Motion Detection, Privacy Mask, Anti Fog, Tampering Detection, Corridor Mode, Push Video , P2P(Optional) | |
| AI function (optional) | Crowd Detection, Queue Detection, Intrusion Detection, Loitering Detection, Line Crossing Detection, Enter/ Exit counting, Parking Detection |
|
| Quadruple Streaming | Yes | |
| Image Snapshot | Yes | |
| Full Screen Monitoring | Yes | |
| Privacy Mask | Yes, 5 different areas | |
| Compression Format | H.264+/ H.264/ M-JPEG | |
| Video Bitrates Adjust | CBR, VBR | |
| Motion Detection | Yes, 12 different areas | |
| Triggered Action | Mail, FTP, Save to SD card, DO, Samba | |
| Security | Password protection, IP address filtering, HTTPS encrypted data transmission, 802.1X port-based authentication for network protection, QoS/DSCP | |
| Firmware Upgrade | HTTP mode, can be upgraded remotely | |
| Simultaneous Connection | Up to 10 | |
| SD Card Management | Recording Trigger | Motion Detection, IP check, Network break down (wire only), Schedule, DI |
| Video Format | AVI, JPEG | |
| Video Playback | Yes | |
| Delete Files | Yes | |
| Remote Browsing |
OS | Windows 10 , Chrome, Edge, Firefox, Safari, Opera |
| Hardware Suggested | Intel Core i7-4790 4GHz , 8G DDR , NV GeForce GTX750 | |
| Mobile Support | iOS 9 or above, Android 5 or above. | |
| *Specifications are subject to change without notice | ||
|
